PRODUCT OVERVIEW

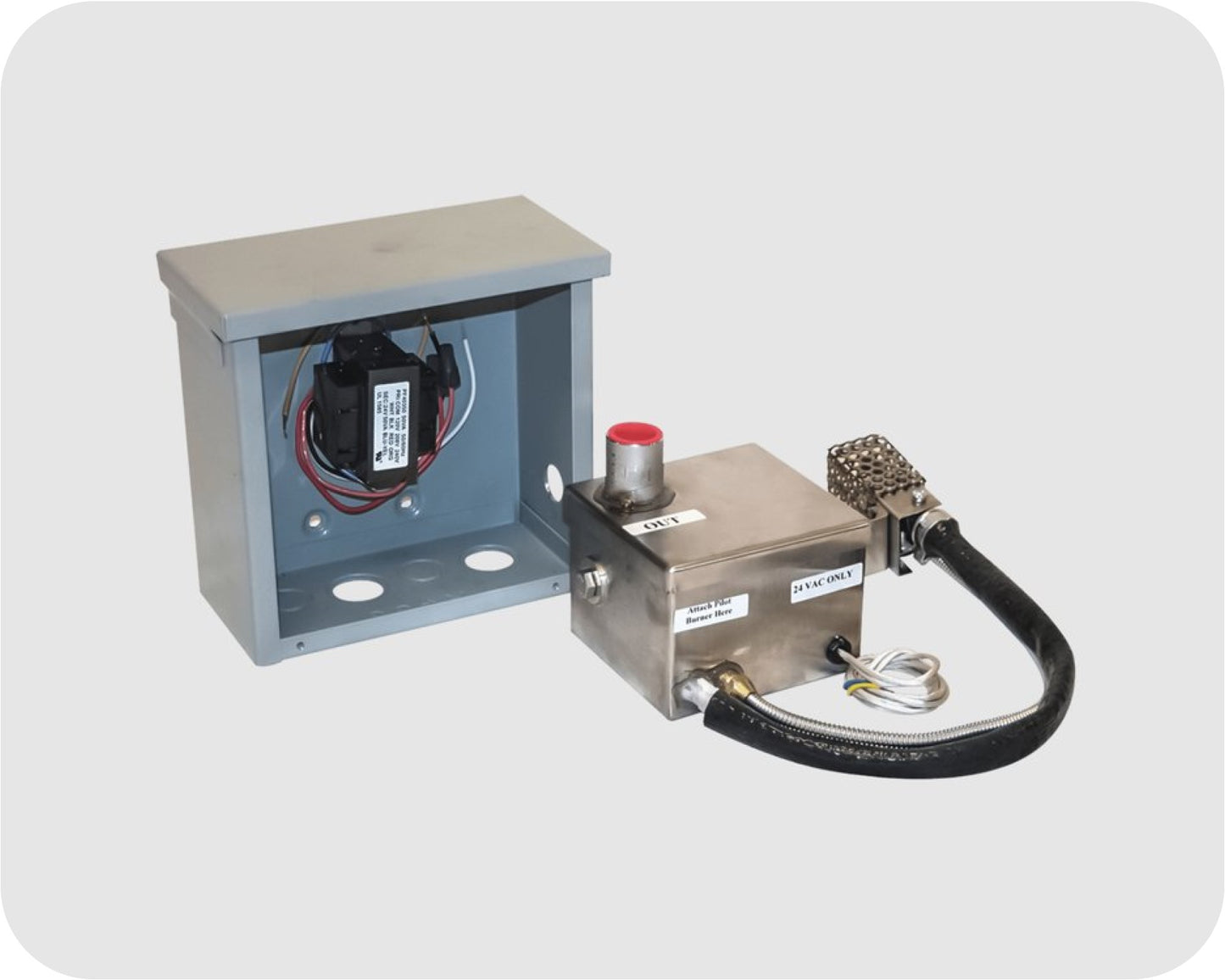

The fire pit is one of the coolest features you can add to your backyard paradise. The Freedom Electronic Ignition System is the ultimate control for outdoor fire features. Powered by a state of the art microprocessor, it provides safe and sure control of ignition and operation. Built to withstand harsh outdoor conditions, the Freedom Electronic Ignition constantly monitors your fire and will even relight it in the case unusually high winds or rain temporarily extinguishes it. This ignition unit uses commercial grade components to ensure years of trouble free operation. Available for use with LP or Natural Gas. This product only used on The Freedom Collection Fire Pits.
INSTALLATION GUIDE
SPECIFICATIONS:
- Components are CSA Certified
- 12 VAC system to comply to NEC 2014 Article 680 requirements
- -20° to 175° temperature range
- Durable connections designed to resist outdoor conditions
- 265,000 BTU’s at 1" pressure drop
- Hot Surface Ignitor (HSI)
- Electronics are ANSI Z2197 certified
- 2yr warranty for manufactures defects
ELECTRONICS:
- Certified ANSI Z2197 Standard
- 12 VAC for installation within 5 feet of water
- Potted control module to protect against moisture
- Hot Surface Ignition (HSI)
- Provides stable burner ignition in harsh conditions
- Thermocouple is fast responding
- Resistant to wind, moisture and corrosion
GAS VALVE AND PILOT COMPONENTS:
- All connectors are water resistant
- Certified CSA 229521-1656058
- Coils are encapsulated to protect against moisture
- Pilot has robust flame pattern, wind resistant
- Pilot injectors are stainless steel
- Thermocouple is nickel plated for durability
- Hot Surface Ignitor (HSI) with protective cage
- Hot Surface Ignitor (HSI) connection is waterproof
- The Power Wire connector is waterproof
